	产品详情手动夹钳
	Carver DESTACO Carver 系列 DE-STA-CO Carver 系列 DESTACO Carver Clamps 被用于各种各样的应用程序包括焊接、打开设置加工,手工模夹紧,一般表面加工和快速转换的工作。DESTACO雕工夹代表一个伟大的进步在普通的“C”夹。因为它们是由两个主要组件,框架和可移动的下巴——创建一个坚固和共同风格“C”夹。. Work is held securely by both jaws, not one jaw and a screw. DESTACO offers the following types of Carver clamps: Bar style,Buttress style, C-style, T-slot style.。市场：数控加工，夹具和测试，焊接应用范围：夹具和测试, 焊接, 数控加工	更多信息产品样本选型手册产品视频技术文档

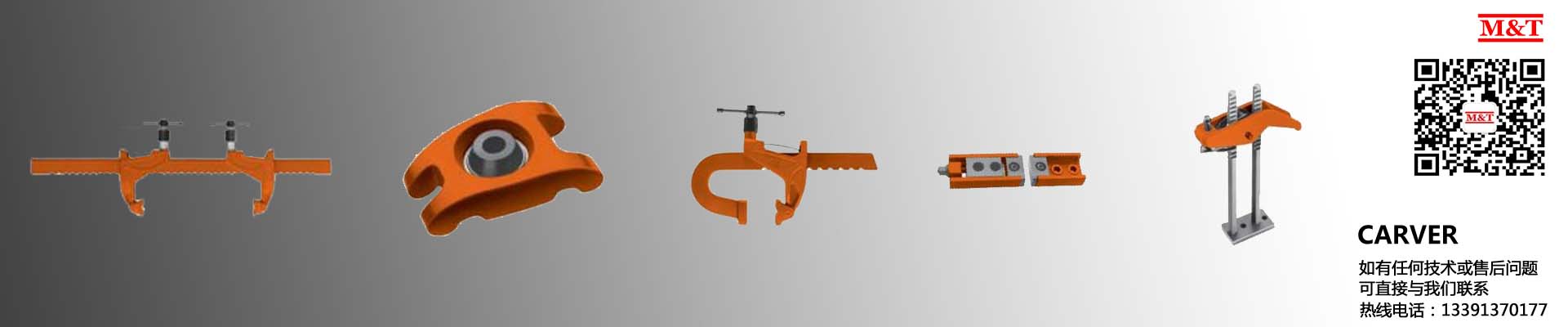

	C-Style Carver Clamps 了解更多		T-Slot Carver Clamps 了解更多		Bar Style Carver Clamps 了解更多		Buttress Style Carver Clamps 了解更多

	Buttress Style 了解更多		Edge Grip Carver Clamps 了解更多


	DESTACO C-Style Carver Clamps - DE-STA-CO
	型号	类型	夹持力	喉深	宽口开度
	T186-12	Carver C Clamp	11120N/ 2500 lbf	60.50mm/ 2.38 in	304.80mm/ 12.00 in
	T186-20	Carver C Clamp	11300N/ 2500 lbf	60.00mm/ 2.38 in	300.00mm/ 11.80 in
	T186-6	Carver C Clamp	11120N/ 2500 lbf	60.50mm/ 2.38 in	152.40mm/ 6.00 in
	T257-12	Carver C Clamp	26690N/ 6000 lbf	114.30mm/ 4.50 in	304.80mm/ 12.00 in
	T257-24	Carver C Clamp	26690N/ 6000 lbf	114.30mm/ 4.50 in	609.60mm/ 24.00 in
	T257-54	Carver C Clamp	26690N/ 6000 lbf	114.30mm/ 4.50 in	1371.60mm/ 54.00 in
	T285-18	Carver C Clamp	8895N/ 2000 lbf	203.20mm/ 8.00 in	457.20mm/ 18.00 in
	T285-40	Carver C Clamp	9000N/ 2000 lbf	200.00mm/ 8.00 in	1000.00mm/ 39.00 in
	T285-9	Carver C Clamp	8895N/ 2000 lbf	203.20mm/ 8.00 in	228.60mm/ 9.00 in
	T290-18	Carver C Clamp	17795N/ 4000 lbf	88.90mm/ 3.50 in	457.20mm/ 18.00 in
	T290-40	Carver C Clamp	18000N/ 4000 lbf	90.00mm/ 3.50 in	1000.00mm/ 39.00 in
	T290-9	Carver C Clamp	17795N/ 4000 lbf	88.90mm/ 3.50 in	228.60mm/ 9.00 in
	T321-10	Carver C Clamp	6670N/ 1500 lbf	120.70mm/ 4.75 in	254.00mm/ 10.00 in


	DESTACO T-Style Carver Clamps - DE-STA-CO
	型号	类型	夹持力	喉深	宽口开度
	T400-4	Carver T Slot Clamp	22270N/ 5000 lbf	33.00mm/ 1.44 in	100.00mm/ 4.00 in
	T400-8	Carver T Slot Clamp	22270N/ 5000 lbf	33.00mm/ 1.44 in	200.00mm/ 8.00 in
	T402-12	Carver T Slot Clamp	36300N/ 8000 lbf	68.00mm/ 2.56 in	300.00mm/ 12.00 in
	T402-18	Carver T Slot Clamp	36300N/ 8000 lbf	68.00mm/ 2.56 in	450.00mm/ 18.00 in
	T402-24	Carver T Slot Clamp	36300N/ 8000 lbf	68.00mm/ 2.56 in	600.00mm/ 24.00 in
	T402-6	Carver T Slot Clamp	36300N/ 8000 lbf	68.00mm/ 2.56 in	150.00mm/ 6.00 in
	T600-4	Carver T Slot Clamp	16000N/ 3500 lbf	73.00mm/ 2.94 in	100.00mm/ 4.00 in
	T600-8	Carver T Slot Clamp	16000N/ 3500 lbf	73.00mm/ 2.94 in	200.00mm/ 8.00 in
	T602-12	Carver T Slot Clamp	25000N/ 5500 lbf	123.00mm/ 4.50 in	300.00mm/ 12.00 in
	T602-18	Carver T Slot Clamp	25000N/ 5500 lbf	123.00mm/ 4.50 in	450.00mm/ 18.00 in
	T602-6	Carver T Slot Clamp	25000N/ 5500 lbf	123.00mm/ 4.50 in	150.00mm/ 6.00 in

	DESTACO Bar-Style Carver Clamps - DE-STA-CO
	型号	类型	夹持力	喉深	宽口开度
	T186-24	Carver Clamps	11120 N2500 lbf	60.50 mm2.38 in	609.60 mm24.00 in
	T186-36	Carver Clamps	11120 N2500 lbf	60.50 mm2.38 in	609.60 mm24.00 in
	T257-84	Carver Clamps	26690 N6000 lbf	114.30 mm4.50 in	2133.60 mm84.00 in
	T285-36	Carver Clamps	8895 N2000 lbf	203.20 mm8.00 in	914.40 mm36.00 in
	T285-60	Carver Clamps	8895 N2000 lbf	203.20 mm8.00 in	1524.00 mm60.00 in
	T290-60	Carver Clamps	17795 N4000 lbf	88.90 mm3.50 in	1524.00 mm60.00 in
	T290-84	Carver Clamps	17795 N4000 lbf	88.90 mm3.50 in	2133.60 mm84.00 in

	DESTACO Buttress Style Carver Clamps - DE-STA-CO
	型号	类型	夹持力	喉深	宽口开度
	T321-24	Carver Clamps	5560 N1250 lbf	120.70 mm4.75 in	609.60 mm24.00 in
	T321-60	Carver Clamps	5560 N1250 lbf	120.70 mm4.75 in	1524.00 mm60.00 in


	DESTACO Buttress Style - DE-STA-CO
	型号	类型	夹持力	喉深	宽口开度
	T614-0	Carver Buttress Clamp	13000 N2875 lbf	45.00 mm1.75 in	13.00 mm0.50 in
	T614-1	Carver Buttress Clamp	62500 N13750 lbf	57.00 mm2.25 in	21.00 mm0.75 in
	T614-2	Carver Buttress Clamp	80000 N17600 lbf	75.00 mm3.00 in	26.00 mm1.00 in

	DESTACO Edge Grip-Style Carver Clamps - DE-STA-CO
	型号	类型	夹持力	喉深	宽口开度
	T500	Carver Edge Grip Clamp	62.00 mm2.59 in	9000 N2000 lbf	22500 N5000 lbf
	T550	Carver Edge Grip Clamp	143.00 mm5.94 in	18000 N4000 lbf	45000 N10000 lbf
